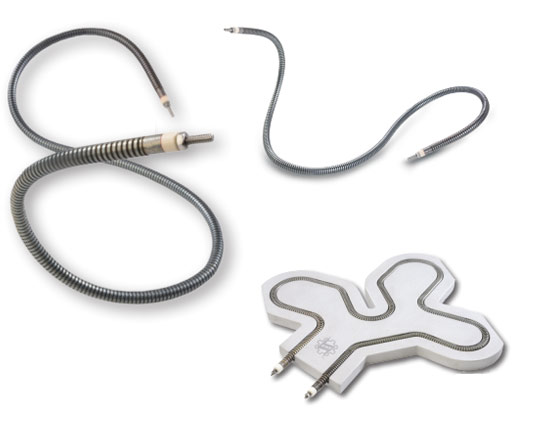

Flexible Tubular Heaters for HotRunner Manifolds
- Available Dia 8.00 & 8.50 mm
- Effortless forming for Easy installation
- Maximum sheath contact (upto 75%)
- Rapid heat transfer and distribution
- Minimal temp. variance between heater sheath manifold
- Reduced energy costs
- Smaller bending radius

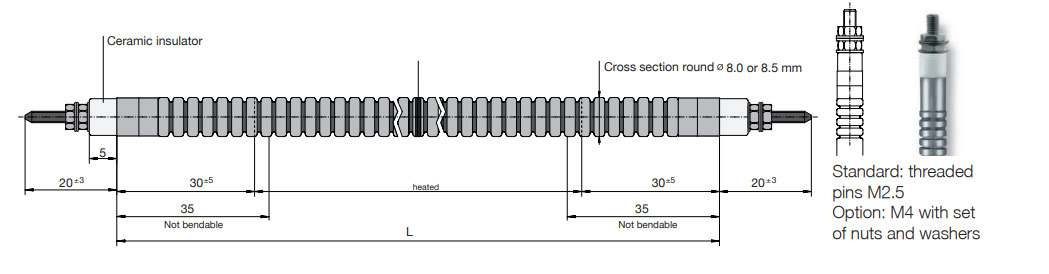

- Groove Dimensions -
- For 8 mm: 7.80 (W) (±0.05) mm x 8.00 (H) (±0.10) mm,
- For 8.5 mm: 8.30 (W) (±0.05) mm x 8.50 (H) (±0.10) mm
