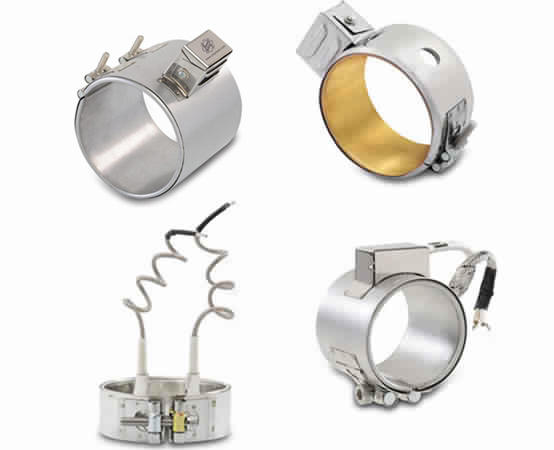

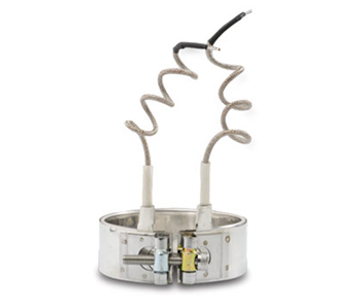

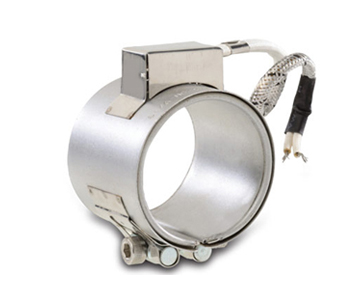

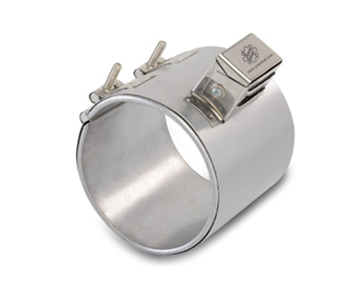

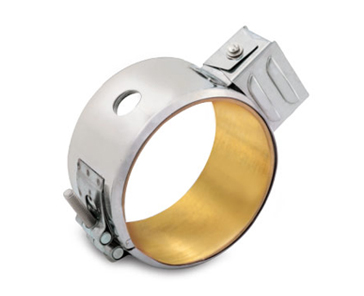

Mica Heaters (Band/Nozzle)
- AL Steel / SS Sheathing
- Engineered for Uniform Temperature & Maximum Amperage carrying capacity
- Robust Terminal Junction with specially designed Chrome Nickel Steel protection cap to protect exposed terminals
- Special High Grade Mica insulation for Superior Thermal Conductivity
- Available in Various Lead Terminations & Clampings
- Conserves Energy with improved Heating Efficiency Up to 30W/sq2
- Designed for Temperatures up to 300℃
- Glass Fibre insulated Metal Braided Terminal Cable
- Barrel Nut type clamping with Terminal Protection Box
- Expandable to fit around the Barrel O.D. Easy installation & removal
- Surface Loading: Upto 30W / in2
- Voltage Range: 110V - 440V Single Phase & Two Phase
- Min. Inside Diameter: 25 mm
- Min. Width: 25 mm without mounting / thermocouple holes
- 35mm with mounting / thermocouple holes
