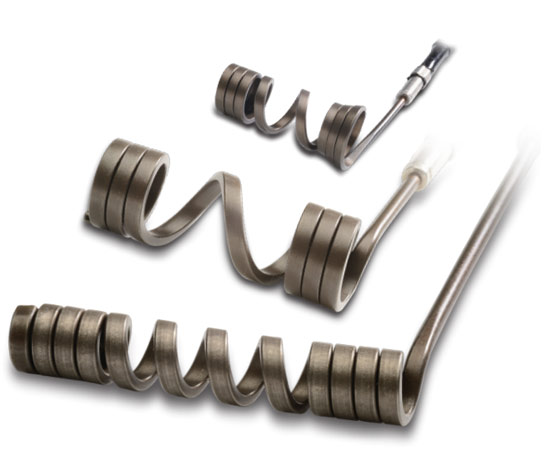

Hot Runner Injection Mold Coil Heater Manufacturers & Exporters to Colombia
Hot Runner Injection Mold Coil Heater Manufacturers & Exporters to Colombia
- Sheath material: SS
- Standard sizes available with various cross section
- Various Watt Density options available
- Designed for even heat profile
- Precision fit on Hot Runner Nozzles
- Highly Non-corrosive
- with J Type Thermocouple (ungrounded)
Applications
Hot Runner Nozzles & Bushings l Tube Extrusion l Pipe Forming- Sheath Temperature: 7500C Max
- Voltage Range: 24 to 250 volts
- Standard Wattage: 250W, 330W, 400W, 470W, 550W, 650W, 750W, 850W, 1000W, 1100W
- Connection Wires: 1000 mm Stranded Nickel wires with PTFE coating
- Available Cross Sections (in mm):
- Round: 2.9, 3.3, 3.8
- Square: 3 x 3, 3.3 x 3.3
- Flat: 1.8 x 3.2, 2.5 x 4.3, 4 x 6.4
- Tolerance on all dimensions ± 0.1mm
DIMENSIONAl DATA | SPECS | TOlERANCE | |
---|---|---|---|
ID | A | - 0.4 - 0.2 |
|
LENGTH | B | ± 1 mm | |
OD | C | ||
COLD LENGTH | D | ± 5 mm | |
CABLE LENGTH | E | ± 25 mm | |
WATTS | W | ± 10 % | |
VOLTS | V | ||
2 POWER CABLE 2 THERMOCOUPLE 1 GROUND (EARTHING) |
F |
About us
For team PHP, quality is not an act but a way of life. The company is able to leverage on process automation to deliver Quality products, maintaining overall consistency across the range by following internationally recognized quality control and work in process inspection methods. Over the years, the company has achieved CE Certification which further reiterates the company’s commitment to follow highest-quality standards, assuring its customers about excellent deliverables.
Our Global Reach in 50 years
PHP is proud to have earned leadership through quality, customer satisfaction and proven experience of manufacturing and exports over past 50 years, we have been pioneering in new developments in heater technology and providing total heating solutions across the globe. Our Wide range of products cover almost every kind of Industrial Heating Elements that are used in various applications across Colombia and around the globe. Our Exports to Colombia include wide range of products including Hot Runner Injection Mold Coil Heaters, Tubular Heaters, Nozzle Heaters, Cartridge Heaters, Mica Heaters, Thermocouples and Energy Saving Insulated Jackets.
