Name: Flexible Tubular Heaters for Hot Runner Manifolds
Brand: Pratik Heat Products

Product Overview

Flexible Tubular Heaters for Hot Runner Manifolds

Flexible tubular heaters for hot runner manifolds, designed for effortless forming, high sheath contact and energy-efficient, uniform heating.

Pratik flexible tubular heaters are designed for hot runner manifolds where heaters must be formed into complex shapes while maintaining intimate contact with the groove.

High sheath-to-groove contact and optimised watt density ensure rapid heat transfer, uniform temperature and reduced energy consumption.

The range includes 6.5 mm, 8.0 mm and 8.5 mm heater data for different manifold groove requirements.

Download Catalogue Request for Quote

Flexible Tubular Heaters for Hot Runner Manifolds

Available diameters: 6.50 mm, 8.00 mm & 8.50 mm.
Effortless forming for easy installation.
Maximum sheath contact (upto 75%).
Rapid heat transfer and distribution.
Minimal temp. variance between heater sheath & manifold.
Reduced energy costs.
Smaller bending radius (12 mm).

The groove for insertion of PHPflex must be equipped with a chamfer.
Observe minimum bending radius of the PHPflex (recommended groove geometry and radius refer to catalogue).

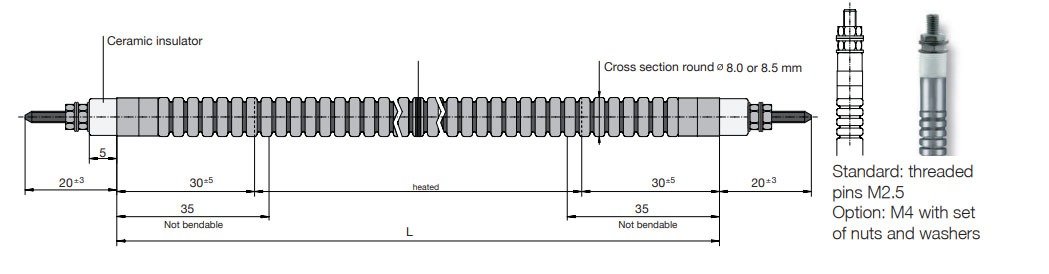

For 8.0 mm & 8.5 mm: Do not bend the unheated ends of the PHPflex more than length of 40 mm.
For 6.5 mm: Do not bend the unheated ends of the PHPflex less than length of 40 mm from each ends.
Do not straighten the bent areas of the heater to avoid breakage.
For 8.0 mm & 8.5 mm: Terminals M2.5 and M4.
For 6.5 mm: Terminals M2.5.
In order to attach a cable lug to the threaded pin, lock the two nuts one against the other at 1 N.m tightening torque.
Mark centre of the PHPflex before inserting into a groove, start at this mark in both directions.
Do not use sharp-edged tools.
The heater can be bent manually and fixed into the groove by plastic mallet.

For 8.0 mm & 8.5 mm: Sheath material - Stainless Steel.
For 6.5 mm: Sheath material - Nickel.
Sheath temperature of heating element - max. 700 °C.
Standard voltage - 230 V.
High voltage test - 1000 V AC.
Insulation resistance - ≥5 MΩ at 500 V DC.
For 8.0 mm & 8.5 mm: Leakage current - < 0.5 mA at 253 V AC.
For 6.5 mm: Leakage current - < 0.5 mA at 240 V AC.
For 8.0 mm & 8.5 mm: Standard Length available 400 mm upto 1550 mm (Tolerance ± 1.5%).
For 6.5 mm: Standard Length available 400 mm upto 1200 mm.
Wattage tolerance - ±10%, Length tolerance - ± 1.5%.
Groove Dimensions - For 8 mm: 7.80 (±0.05) mm x 8.00 (±0.10) mm, For 8.5 mm: 8.30 (±0.05) mm x 8.50 (±0.10) mm.
Groove Dimensions - For 6.5 mm: 6.5+0.1 mm x 6.5+0.1 mm.

Heater Ø	Groove Width (W)	Groove Height (H)	Tolerance
6.5 mm	6.5 +0.1 mm	6.5 +0.1 mm	Round groove geometry
8.0 mm	7.80 mm	8.00 mm	W: ±0.05 mm, H: ±0.10 mm
8.5 mm	8.30 mm	8.50 mm	W: ±0.05 mm, H: ±0.10 mm

Stock Sizes - For Dia 6.50 mm

Length (mm)	Watts
400	500
450	600
500	650
550	700
600	800
650	850
700	900
750	1000
800	1100
850	1200
900	1300
950	1350
1000	1400
1050	1450
1100	1500
1150	1550
1200	1600

Stock Sizes - For Dia 8.0 mm & 8.50 mm

Length (mm)	Watts
400	800
450	900
500	1000
550	1150
600	1250
650	1400
700	1500
750	1600
800	1750
850	1850
900	1950
950	2100
1000	2200
1050	2300
1100	2450
1150	2550
1200	2650
1250	2800
1300	2900
1350	3000
1400	3150
1450	3250
1500	3350
