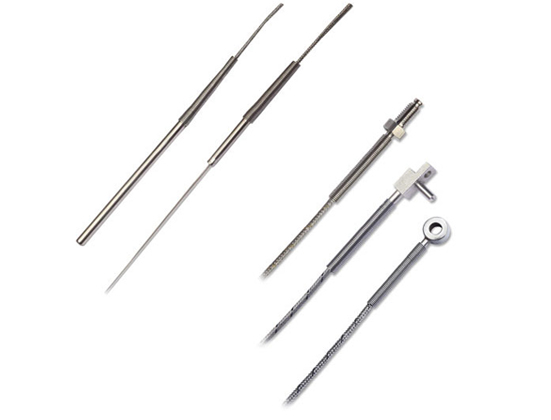

Thermocouples

Thermocouples for hot-runner and industrial use — Mineral Insulated and Manifold (Pin / Ring) types. J-type (Fe–CuNi), IEC 60584, with bend-protection spring and GLS leads.

Pratik thermocouples are designed for precise temperature measurement in hot runner systems and other demanding industrial processes.

Available as mineral insulated probes as well as manifold pin and ring / washer types, they offer reliable performance with J-type (Fe–CuNi) sensing elements, GLS leads and bend-protection springs.

Download Catalogue Request for Quote

Measurement range: −40 °C to +750 °C.
Classification tolerance: Class 1 or Class 2.
All thermocouples with bend-protection spring, 2000 mm lead length, measuring point ungrounded.
Available diameters: 1.0 mm, 2.5 mm.
Standard lengths: 90 mm, 150 mm, 250 mm.
Type: J-Type (Fe–CuNi), IEC 60584.
Lead type: GLS.

Pin type manifold thermocouple:
• Measurement range: 0 to 400 °C.
• Classification tolerance: Class 2.
• Thermocouple with bend-protection spring, 2000 mm lead, measuring point ungrounded.
• Sensor dimension: 4 × 12 mm, bore hole M4.
• Type: J-Type (Fe–CuNi), IEC 60584.
• Lead type: GLS.
Ring / washer type manifold thermocouple:
• Classification tolerance: Class 1.
• Thermocouple with bend-protection spring, 1000 mm lead, measuring point ungrounded.
• Sensor dimension: ID 5.1 mm, OD 12.7 mm, thickness 5 mm.
• Type: J-Type (Fe–CuNi), IEC 60584.
• Lead type: GLS.
